Status: Proposed · August 2026

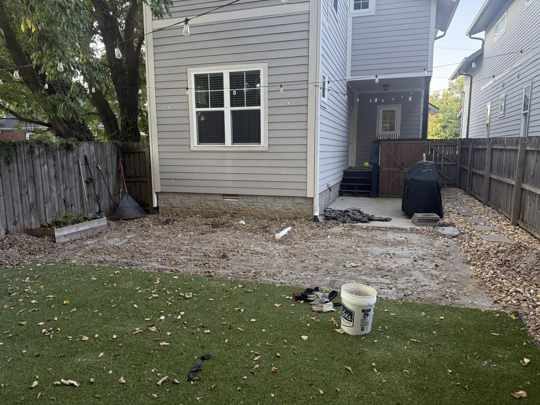

A narrow-lot backyard on Urban Place in East Nashville: about 230 square feet between the house and an existing synthetic-turf lawn, already stripped to gravel and dirt, with a concrete pad at the back steps as the tie-in line. The homeowners wanted a paver patio that runs the full width of the space. The complication is the only way in — a side gate that measures right at five feet, narrowed further by an air-conditioning unit. Everything that goes in or comes out of this yard moves by hand.
The problem
The space itself is easy. What’s under it is not a base — river rock and loose angular stone under the turf, not compacted, screeded paver base — and the access is the whole cost story. A conventional patio is dug eight to twelve inches deep and rebuilt in layers of crushed stone. On a lot where every wheelbarrow of spoil out and every ton of stone in goes through a five-foot gate past an AC unit, that base is most of the labor.
Two things from the homeowners’ photos shaped the plan: a PVC stub standing mid-area that has to be located before any base goes down, and both rear downspouts discharging into the same footprint, so slope and outlet routing matter.
What we’re building
| Zone | Build stack, top to bottom |
|---|---|
| Patio — about 230 sq ft | Excavate 3–4 in. and haul the spoil by hand → Gator Fabric geotextile → compacted sand bed → Gator Base heavy-duty panels → Unilock Beacon Hill pavers in a simple running field, saw-cut perimeter, soldier-course border → edge restraint and paver edger around the full perimeter → polymeric sand swept and locked → final compaction and clean-down. |
The base is Gator Base, the engineered panel system from Alliance Gator, chosen for this lot on purpose. One heavy-duty panel does the work of six inches of crushed stone and replaces about 288 pounds of it. The dig drops to roughly three to four inches, and the system is rated for pedestrian use at 8 PSI dynamic — 1,152 pounds on a single 12×12 paver — well past what a patio table and a dog will ask of it. There are thin, cheap panels on the market that feel spongy underfoot; we don’t install those, and if what we find on site says a stone base is the better build, we say so before we start.

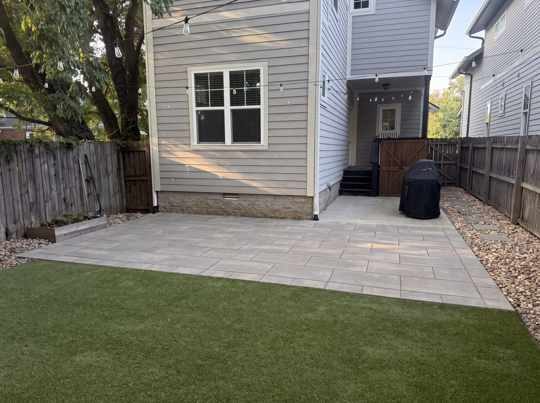

Design direction was deliberately simple. The homeowners had looked at grid layouts with turf strips between the pavers; we steered them off it — expensive to build, and once a table and four chairs go on top the pattern fights the furniture. A clean rectangular field with a single border row reads better at this size and holds up.
The material

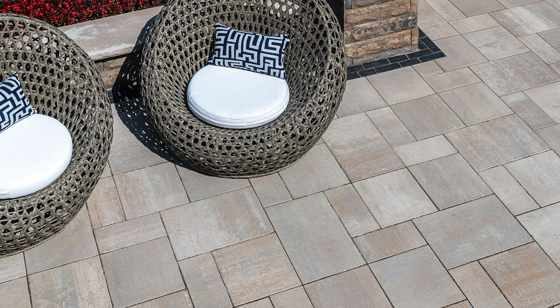

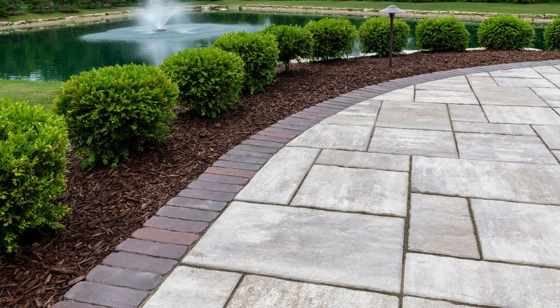

Unilock Beacon Hill, smooth or textured top, in the homeowners’ color — same price either way, lifetime manufacturer warranty. Smooth reads cleaner and more modern and pairs with the straight lines of the turf and fence; the Flagstone texture is worked to feel like cut stone and hides dust and pollen a little better between cleanings. Beacon Hill also comes in an XL unit, but on 230 square feet the larger pieces start to fight the size of the space, so standard sizes stay.
Living with it
The big tree over this yard looks like a hackberry, which drops a black film. Wet & Forget handles it. The one rule: don’t pressure-wash a polymeric-sand patio — it blows the joints out.
How we build it
See the full paver patio build, and for lots with normal access, the conventional stone base on our concrete pavers page. Tight-access jobs across East Nashville — five-foot gates, shared driveways, no machine access — are exactly what the panel base exists for.
East Nashville
Urban Place sits in the dense part of East Nashville where lots are narrow, houses are close, and the side yard between two homes is the only route to the back. We build a lot of patios here that never see a machine. The gate width is the first thing we measure on any East Nashville consult, because it decides the base system before the paver is even picked.
Thinking about the same thing for your backyard? Call (615) 356-0139 or request a free quote. We come out, look at it, and tell you straight what it needs.
